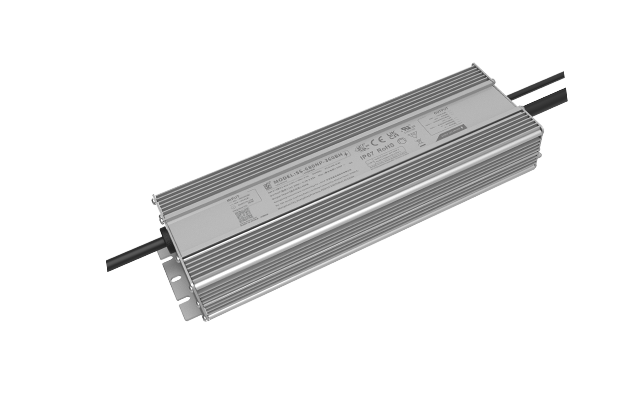

SS-680NP-360*

SS-680NP-360*

Product Features

Power:680W

Series:CC LED Driver

Application:Horticulture light, High Pole light, Stadium light, Fish light

Certificate:UL/cUL, ENEC, CE, UKCA

Warranty:5 years

Product Description

CC LED Driver

Consult lmmediately
Specifications
Reference
Features
Parameters
Packing
Model AC Input Range(Vac) Max. Pout(W) Vout Range(Vdc) Full Power Vout Range(Vdc) Iout(A) THD(Typ.) PF(Typ.) Eff.(Typ.) Max.Tc
SS-680NP-360* 90-305 680 210-360

240-360

0.35-2.83 6% 0.97 96% 90℃

Efficiency up to 97%

Dimming: 0-10V, PWM, Resistor, Timing

Surge protection:  CM: 6kV, DM: 6kV

AUX Power12V/0.3A

Constant Lumen, Life Warning

Standby Power<0.5W

IP67

Communication with PC

Protections: SCP/OTP

Warranty: 5 years

    Reted input voltage 100~277Vac
    Input Frequency Range 50/60Hz
    Max. Pout 680W
    Dimension 297*89.5*44.5(mm)
    Carton dimension L×W×H =495×385×162(mm)
    QTY 7 PCS
    Net weight/PC 2.19kg
    Gross weight/Carton 16.28kg
