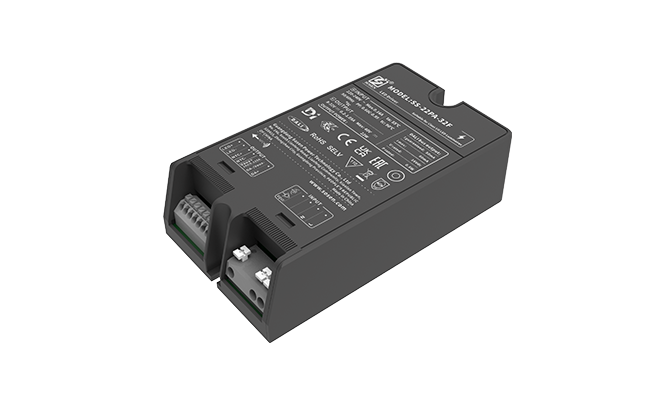

SS-22PA-XXF

SS-22PA-XXF

Product Features

Power:22W

Series:D4i Version

Application:Street light, Tunnel light, Industrial and sports light

Certificate:ENEC, CE, UKCA, EAC, D4i, DALI-2

Warranty:8 years

Product Description

D4i Version

Consult lmmediately
Specifications
Features
Reference
Parameters
Packing

Efficiency up to 87%

Output current can be adjusted by NFC

DALI-2 & D4i certification

Dim-to-off & Standby power≤0.5W

Surge Protection: CM: 10kV, DM: 6kV

AUX Power: 24V/125mA

Low Inrush Current≤20A

Built-in 16Vdc DALI-2 bus power supply

Built-in AC power metering with up to ±1% accuracy

AC Dimming/Timing/ELA/CLO/NTC

Protections: SCP/OTP/OVP/OPP

Suitable for Class I /II luminaires

IP20

Installation dimensions conform to Zhaga standards

Warranty: 8 years

    ModelAC Input Range(Vac)Max. Pout(W)Vout Range(Vdc)Full Power Vout Range(Vdc)Iout(A)THD(Typ.)PF(Typ.)Eff.(Typ.)Max.Tc
    SS-22PA-32F

    80-264

    168-280

    228-32

    21-32

    0.2-1.058%0.9886%90℃
    SS-22PA-49F

    80-264

    168-280

    2218-49

    32-49

    0.2-0.78%0.9887%90℃
    SS-22PA-72F

    80-264

    168-280

    2224-72

    49-72

    0.2-0.458%0.9887%90℃
    Reted Input Voltage220~240Vac
    Input Frequency Range50/60Hz
    Max. Pout22W
    Dimension134*77*37(mm)
    Carton DimensionL×W×H =445×300×153 (mm)
    QTY30 PCS
    Net Weight/PC0.5kg
    Gross Weight/Carton16.16kg
