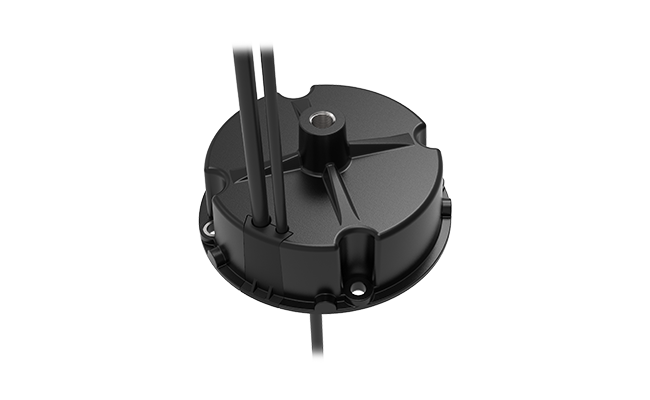

SS-200CNL-E260*

SS-200CNL-E260*

Product Features

Power：200W

Series：CC LED Driver

Application：High bay light, High pole light

Certificate：UL/cUL, TUV, EAC, UKCA, RCM, CCC, CE, DALI-2

Warranty：5 years

Product Description

CC LED Driver—DIP switch Version

Consult lmmediately
Specifications
Features
Parameters
Reference
Packing

Efficiency up to 96%

Isolated dimming: DALI-2, 0-10V, PWM, Resistor

Optional aux: 12V/0.2A

IP65

Protections: SCP/OTP/OVP

Surge protection: CM: 6kV, DM: 6kV

Warranty: 5 years

    Reted input voltage120-277Vac
    Input Frequency Range50/60HZ
    Max. Pout200W
    Dimensionφ128*62.5（mm）
    ModelAC Input Range（Vac）Max. Pout（W）Vout Range（Vdc）Full Power Vout Range（Vdc）Iout（A）THD(Typ.)PF(Typ.)Eff.(Typ.)Max.Tc
    SS-200CNL-E260*90-305200180-260

    200-260

    		0.7-1.07%0.9795.5%90℃
    Carton DimensionL×W×H =577×385×162 (mm)
    QTY14 PCS
    Net Weight/PC0.85kg
    Gross Weight/Carton14.5kg
